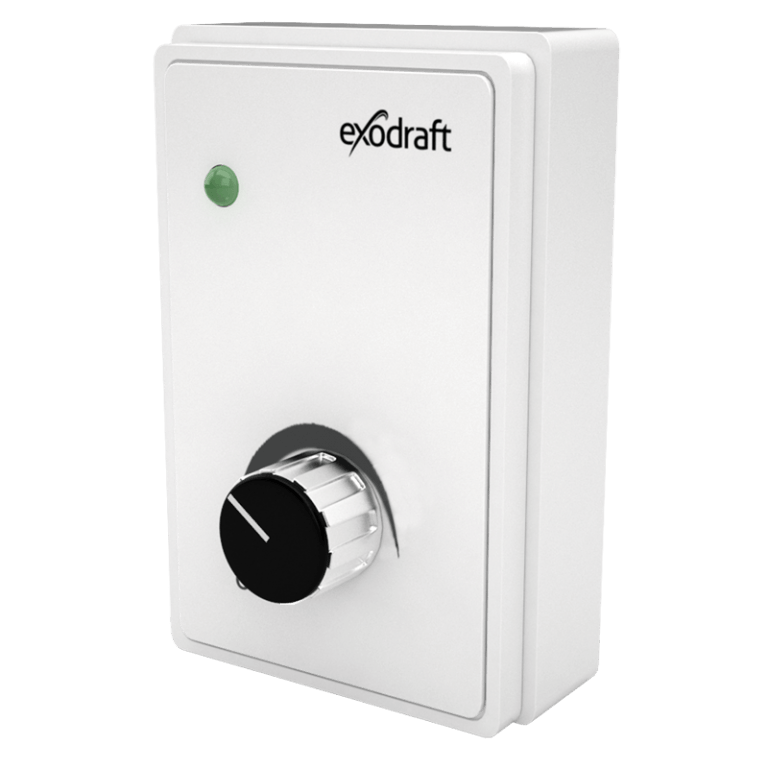

Exodraft EFC35 Control Unit

The EFC35S is an electronic, manual control unit that connects to your chimney fan to give you control over the fan.

With an EFC35S, you can adjust the fan’s capacity, which can range from 25-100%, depending on whether you are starting a fire, refueling, or maintaining a fire.



The control unit has a knob for speed adjustment, as well as an LED light that illuminates when the fan is operating.

Features

Operation

Manual

Compatible with

All Chimney Fans

Aesthetics

Simple Design

Technology

Stepless Knob

Technical Specifications



Height (mm)

102

Length (mm)

74

Depth (mm)

67

Max. load

3,5 A

Fuse

T 4 AH

 Voltage

230 V AC, 50 Hz

Ambient temperature

0 ºC – +35 ºC

 Density Class

IP 30

Material

ABS

Colour

White
