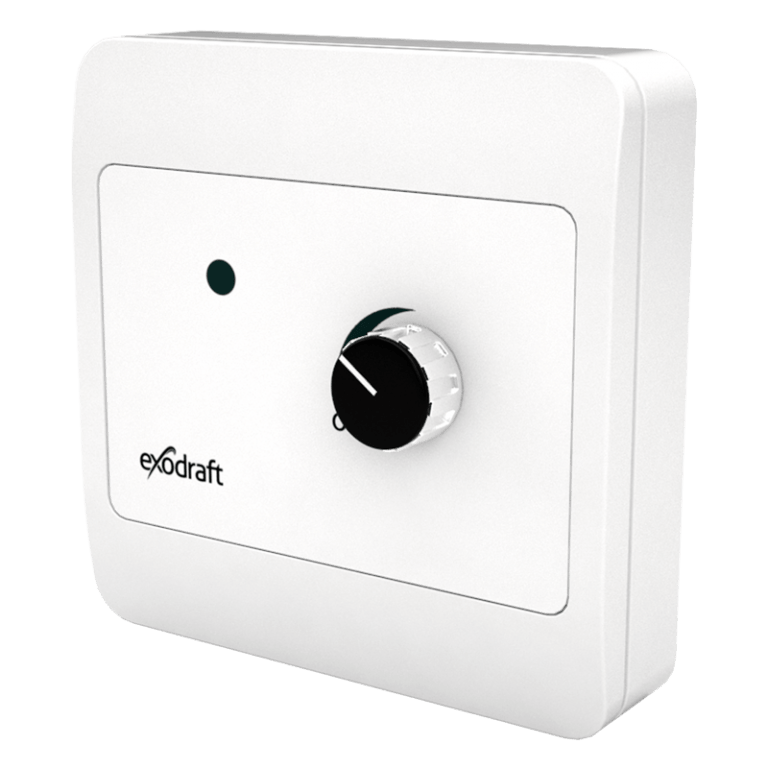

Exodraft EFC16 Control Unit

With an EFC16, you can regulate the chimney fan’s capacity, which can vary from 25-100%,

EFC16 is an electronic manual control unit that connects to your chimney fan to give you control over the chimney fan.



With an EFC16, you can regulate the chimney fan’s capacity, which can vary from 25-100%, depending on whether you are starting a fire, refueling, or maintaining a steady fire.



The control unit has a knob for adjusting the speed, as well as an LED that lights up when the chimney fan is in operation.

Features

Operation

Manual

Compatible with

Small and Medium-Sized Chimney Fans

Aesthetics

Simple Design

Technology

Stepless Knob

Technical Specifications



Height (mm)

85

Length (mm)

85

Depth (mm)

52

Max. load

1,5 A

Fuse

T 1,6 AH

 Voltage

230 V AC, 50 Hz

Ambient temperature

0 ºC – +40 ºC

 Density Class

IP 30

Material

ABS

 Colour

White
